Braided Hose

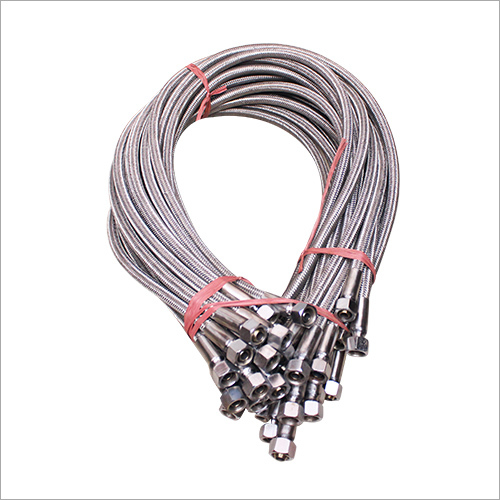

Name: Braided Flexible Metal Hose
Brand: SURYA ENGINEERING WORKS
Price: 300 INR
Availability: InStock

Price 300 INR/ Meter

Get a Price/Quote

MOQ : 100 Meters

Braided Flexible Metal Hose Specification

Use
Industrial/Mechanical/Plumbing

Working Presssure
Up to 300 bar

Hardness
Annealed or as specified

Application
Steam, Gas, Oil, Chemical Transfer

Product Type
Flexible Metal Hose

Material
Stainless Steel (SS304/SS316/SS321)

Finish
Polished/Matte

Length
Customized/As required

Tube
Corrugated Stainless Steel

Cover
Stainless Steel Braided

Connection
Flanged, Threaded, Welded

Temperature
-196C to +600C

Vibration Resistance
High

Inner Diameter Range
6 mm to 300 mm

Corrosion Resistance
Excellent

Braid Layer
Single or Double

Leak Tightness
Helium Leak Tested (option)

Media
Air, Water, Oil, Chemicals

Bending Radius
3x Hose Diameter (min.)

End Fittings Material
Stainless Steel / Carbon Steel / Brass

Standard
ASTM / ISO / DIN / BS

Burst Pressure
Up to 900 bar (depending on size/design)

Braided Flexible Metal Hose Trade Information

Minimum Order Quantity
100 Meters

Supply Ability
100 Meters Per Day

Delivery Time
2-3 Days

About Braided Flexible Metal Hose

Braided Hose are highly durable piping solutions designed for transferring liquids, gases, steam, chemicals, and high-pressure fluids in industrial applications. Manufactured using premium grade stainless steel with strong external braiding, these hoses provide excellent flexibility, pressure resistance, vibration absorption, and corrosion protection. Widely used in chemical plants, power stations, oil & gas industries, HVAC systems, and pharmaceutical sectors, braided flexible metal hoses ensure safe and leak-proof performance under extreme temperature and pressure conditions. Their sturdy construction, long service life, and easy installation make them an ideal choice for demanding industrial environments.

With an impressive record of growth in the industry, we have developed ourselves as the most promising manufacturer and supplier of Braided Flexible Metal Hose. It is a complex pattern formed by interlacing three or more strands of flexible material. It is basically a flexible metal line element that acts as a vibration de-coupler in any exhaust system. This Braided Flexible Metal Hose is known for its durability which ensures long life and provides maximum tightness around the material.

Features of Braided Hose:

Very flexible in nature
Leakage proof
Adjustable stroke

Unmatched Performance in Harsh Environments

Thanks to their stainless steel construction and braided cover, these hoses deliver excellent corrosion and vibration resistance, making them suitable for aggressive media and extreme temperatures ranging from -196C to +600C. The braided design allows for high working pressures and minimizes risk of rupture, meeting the stringent needs of industries handling chemicals, steam, or gases.

Versatile Designs and Custom Solutions

These hoses come in a variety of diameters and lengths, with options for single or double braiding to fit different pressure requirements. End fittingsincluding flanged, threaded, or weldedaccommodate diverse installation setups, while polished or matte finishes cater to specific environments. With adherence to global standards, they are trusted by distributors, manufacturers, and service providers across India and beyond.

FAQs of Braided Flexible Metal Hose:

Q: How is a braided flexible metal hose constructed and why is the braid important?

A: A braided flexible metal hose consists of a corrugated stainless steel tube encased in a braided layer made from stainless steel wires. The braid, available as either single or double, enhances pressure resistance, controls elongation under pressure, and provides extra protection against mechanical stress and vibration.

Q: What media can be safely transferred using these hoses?

A: These hoses are designed for safe transfer of air, water, oil, chemicals, steam, and gas. Their stainless steel construction ensures excellent corrosion resistance, making them ideal for handling a range of industrial fluids and gases, even in aggressive or hazardous environments.

Q: When should I choose single braid versus double braid hoses?

A: A single braid is sufficient for most standard pressure applications, whereas a double braid is recommended when the hose must withstand higher working or burst pressures. The double braid offers additional reinforcement, particularly valuable for demanding or safety-critical industrial operations.

Q: Where are these flexible metal hoses commonly used?

A: They are widely employed in industrial, mechanical, and plumbing systems across sectors like chemical processing, oil and gas, power generation, HVAC, and water treatment. Their resistance to temperature extremes and corrosive materials makes them suitable for various demanding environments.

Q: What is the process for customizing a hose to my application needs?

A: You can specify the hose length, diameter, braid type (single or double), fitting type (flanged, threaded, or welded), and finish (polished or matte) based on your requirements. Manufacturers and suppliers offer guidance to select the proper configuration in line with ASTM, ISO, DIN, or BS standards for optimal safety and performance.

Q: How does helium leak testing ensure hose leak tightness?

A: Helium leak testing is an optional method used to verify the integrity of the hose assembly. Helium, being an inert and very small molecule, easily detects even minute leaks to ensure the complete leak tightness essential in critical gas or chemical applications.

Q: What are the benefits of using corrugated stainless steel hoses with a braided cover?

A: These hoses provide a combination of high flexibility, excellent pressure and vibration resistance, durability under extreme temperatures, and superior corrosion protection. This translates to longer service life, reduced maintenance, and enhanced safety in demanding industrial environments.
